Understanding the Connector Challenge in Servo and Industrial Systems

Engineers designing servo motors, industrial communication systems, and other space-constrained automation equipment constantly face a tradeoff between data performance and physical footprint. Standard RJ45 connectors have long served as the default choice for Ethernet-based data transmission, but as equipment becomes more compact and densely packed, many system architects are evaluating whether a smaller, more specialized interface—such as the Mini I/O Connector—can meet the same performance requirements while freeing up critical board and panel space. This question sits at the center of connector selection decisions across Industrial Machinery & Industry 4.0 applications, and TXGA Industrial Electronics (Shenzhen) Co., Ltd., operating under the TXGA brand, has developed both connector types to address this exact decision point.

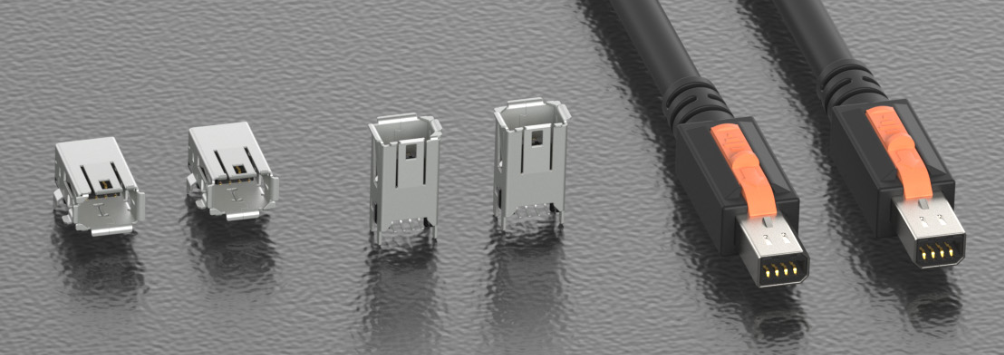

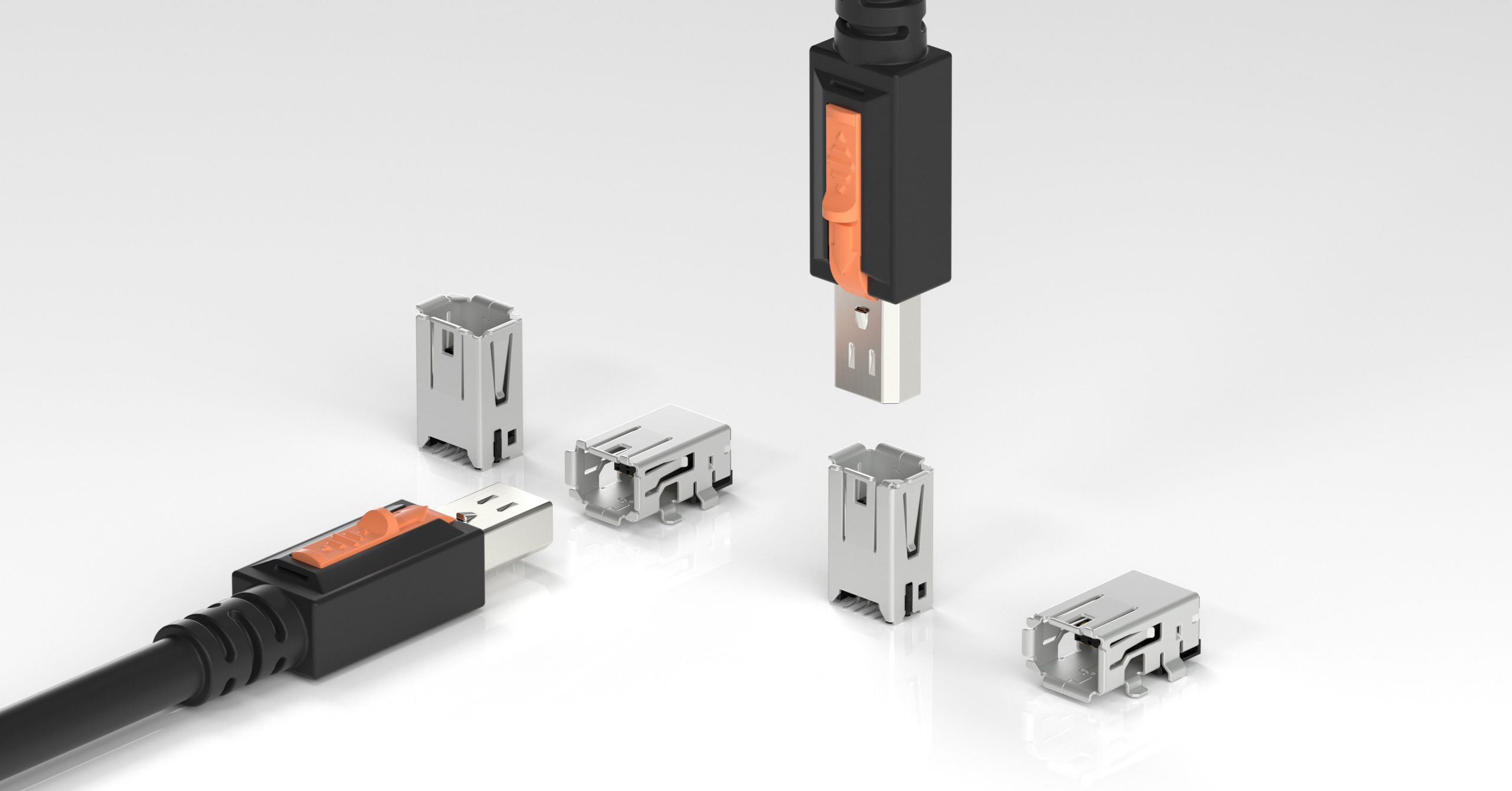

What Makes the Mini I/O Connector Different From RJ45

The Mini I/O Connector is positioned specifically for space-constrained industrial environments, occupying only 25% the size of RJ45. This size reduction is not a cosmetic feature—it directly addresses layout density problems in compact controllers, industrial communication modules, and other equipment where panel real estate is limited. Despite the smaller footprint, the Mini I/O Connector retains meaningful data performance:

• Cat6A support: Delivers a 1000Mbps data rate, matching the throughput expectations typically associated with standard Ethernet infrastructure.
• Mating life: Rated for 1500 plug/unplug cycles, supporting repeated connection and disconnection in maintenance-intensive industrial settings.

These specifications indicate that the Mini I/O Connector is engineered as a direct functional alternative to RJ45 in scenarios where board or enclosure space is the primary constraint, rather than as a replacement in every application.

Real-World Case Evidence: Mini I/O Connector in Industrial Communication Systems

In the documented Industrial Communication System case, the underlying scenario involved industrial automation equipment with a clear demand for miniaturized and reliable connectors. TXGA’s solution applied its Mini I/O connectors to deliver compact industrial connectivity, and the quantified results from this deployment included:

• 25% size vs RJ45
• 100Mbps–1Gbps data transmission range
• 1500 mating cycles
• Compliance with IEC 61076‑3‑122
• Anti‑interference and vibration‑resistant performance characteristics

This case demonstrates that when the priority is reducing connector footprint without sacrificing data rate, mating durability, or resistance to industrial interference and vibration, the Mini I/O Connector provides a validated, standards-compliant path forward. The IEC 61076‑3‑122 compliance in particular signals that this is not a proprietary shortcut but an interface built to recognized industrial connector standards.

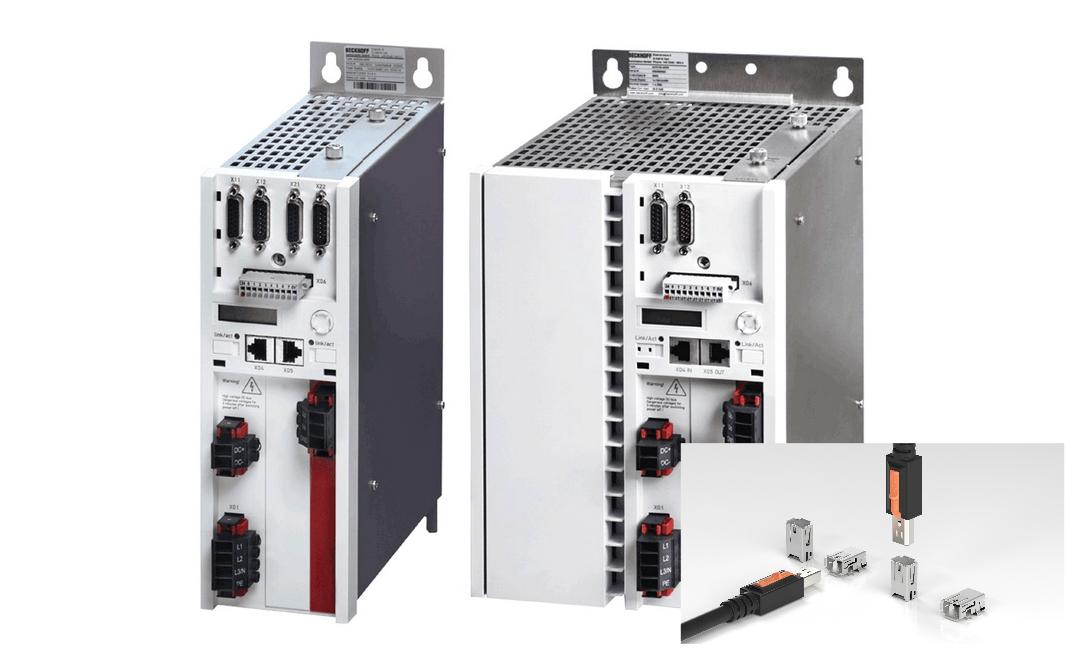

Servo Applications and TXGA’s Full Connector Portfolio

For servo motor systems specifically, the documented case scenario describes a different but related need: servo motors require durable, lightweight, cost-effective connectors capable of withstanding harsh industrial operating conditions. In this case, TXGA’s applied solution drew on its pin & bus bar, board-to-board, and RJ45 connector series, achieving results that included being compact & lightweight, resistant to shock, vibration, humidity, and high-temperature conditions, and cost-efficient with reduced wiring workload and full industrial standard compliance.

This distinction matters for engineers weighing connector choices: TXGA’s product matrix is built so that the same core design priorities—vibration resistance, compactness, cost efficiency, and standards compliance—are addressed across both the Mini I/O Connector line and the RJ45 series, but each is matched to different constraint profiles. Where panel space is the dominant limiting factor, as in the Industrial Communication System case, the Mini I/O Connector’s 25% size reduction becomes the deciding advantage. Where a servo system’s wiring architecture already accommodates RJ45-class connectors and calls for a broader mix of power and signal interconnects (pin & bus bar, board-to-board, RJ45), TXGA’s combined connector series delivers the required durability and cost efficiency within that established footprint.

Technical Foundations Behind TXGA’s Connector Reliability

TXGA’s ability to support both approaches stems from its underlying technical capabilities. The company owns 71 patents and maintains a senior engineer team of 16 experts, backed by an annual R&D investment exceeding 10% of annual sales. Manufacturing reliability is reinforced through 80% automated production coverage and an in-house laboratory supporting over 20 rigorous tests to confirm stability under extreme conditions such as high vibration, dust, temperature extremes, and electromagnetic interference—conditions directly relevant to both servo motor environments and industrial communication systems.

TXGA’s self-developed IFDMS (Intelligent Factory Digital Management System), integrating ERP, CRM, MES, WMS, OA, F2C, HR, QMS, SRM, APS, and SOC, supports efficient procurement and production planning, which contributes to the on-schedule, high-quality delivery referenced across TXGA’s service capabilities. Quality is further validated through certifications including ISO 13485, IATF 16949, ISO 9001, ISO 14000, TÜV, UL, RoHS, and REACH, positioning TXGA to serve regulated sectors such as Automotive Electronics, Medical Devices, and Industrial Machinery & Industry 4.0 without compromising on compliance.

Choosing the Right Connector for Your Application

For engineers, PCB designers, procurement managers, and system architects evaluating connector options, the decision between the Mini I/O Connector and RJ45 should be grounded in the specific constraint driving the design: if space savings and panel density reduction are the priority—as demonstrated in the Industrial Communication System case with its 25% size vs RJ45 and IEC 61076‑3‑122 compliance—the Mini I/O Connector offers a proven, standards-based path. If the application, such as certain servo motor configurations, benefits from an integrated mix of pin & bus bar, board-to-board, and RJ45 interconnects to achieve shock, vibration, humidity, and high-temperature resistance alongside cost efficiency and reduced wiring workload, TXGA’s broader connector series addresses that need directly.

In both cases, TXGA’s underlying commitment—"Building technology foundations and connecting infinite possibilities through high-quality, green, and innovative connector solutions"—translates into connector families engineered around the same rigorous testing, patent-backed R&D, and international certification framework, giving engineers a documented basis for selecting the interface that matches their specific space, performance, and durability requirements rather than defaulting to a single connector type across every application.
