Corporate Profile and Strategic Positioning

VAXOR-MOTOR, operating under the brand name VAXOR-MOTOR / VAXOR, positions itself as a global provider of integrated micro-actuation solutions with business coverage spanning bionic robots, industrial automation, medical devices, and consumer electronics. The company’s strategic focus addresses a specific industry pain point: the need for high torque density, precision, and compact footprints in micro-manipulation and high-load robotic applications—criteria that are directly relevant to the demands of surgical robots and other precision medical instruments.

According to its corporate positioning, VAXOR-MOTOR specializes in axial flux motors, cycloidal gear reducers, and non-contact encoder integration. This combination of technologies is designed to meet the exacting requirements of applications where space is limited, precision is non-negotiable, and reliability under repeated operation is essential—conditions that closely mirror the operational environment of surgical robotics.

Core Technology Platform Built for Precision Medical Applications

VAXOR-MOTOR’s core value proposition centers on achieving high torque density and rigidity through the integration of axial flux motors and micro cycloidal reducers. The company’s electromagnetic designs are engineered to optimize phase imbalance to within 5%, a metric that directly supports high yield and consistent power density across production batches—an important consideration for manufacturers sourcing components for medical-grade equipment.

The technology platform combines three core elements: axial flux motors, micro cycloidal gear reducers, and non-contact absolute magnetic encoders. Key technical metrics include:

• Phase imbalance controlled within 5% for ultra-micro motors
• Actuator diameters ranging from Φ16mm to Φ30mm
• Gear efficiency reaching up to 75% for specific modules
• Backlash as low as 15-20 Arcmin

These figures matter because surgical robotics and micro-manipulation systems require actuators that can deliver dependable torque in confined spaces without sacrificing positional accuracy. The company’s modular design architecture, paired with optimized electromagnetic design for both brushless and coreless systems, allows these actuators to be integrated into diverse robotic platforms without extensive redesign.

Product Lineup Serving Medical Robotics Needs

Ultra-Micro Brushless and Coreless Motors for Medical Robots

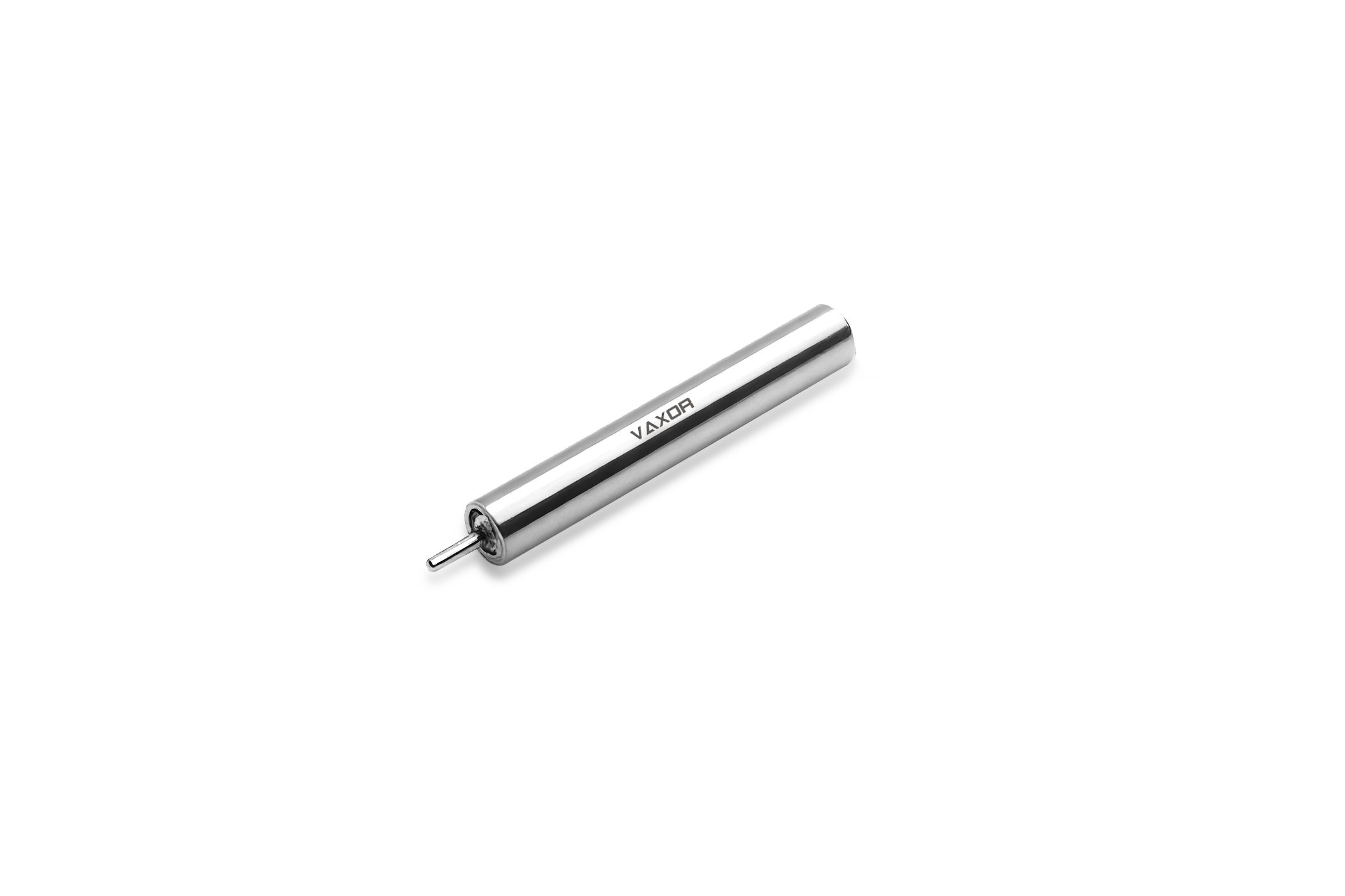

Within its product matrix, VAXOR-MOTOR offers the G04P / G05P / G06P Series, a line of ultra-micro brushless and coreless motors positioned for "ultra-compact power for precision instruments." This series directly addresses the industry pain point of high cost and low yield in sub-6mm motor production, a challenge frequently encountered when scaling components for medical-grade devices.

Key differentiated values of the series include:

• Power Density: Ultra-lightweight units ranging from 1.7g to 3.75g, with speeds reaching up to 63,000 RPM
• Yield Optimization: Phase imbalance within 5%, which reduces production costs while improving reliability

Core features supporting these values include high-speed performance with no-load speeds from 55,000 to 63,000 RPM, thermal resistance supporting chassis temperatures up to 145°C, and optimized terminal resistance as low as 1.6Ω for improved electrical efficiency. According to the company’s industry adaptation notes, this series is specifically suited for medical micro-surgical robots, in addition to applications in photonics and consumer electronics such as miniature haptics and pumps.

Micro Joint Actuator Modules for Integrated Robotic Systems

Complementing the ultra-micro motor series, VAXOR-MOTOR’s Micro Joint Actuator Modules provide precision actuation solutions for dexterous robotic hands, highly integrated robots, and mechanical motion control—technologies that underpin many advanced robotic systems used in medical and surgical settings. The lineup spans four diameter classes:

• The Φ16mm Module (X16S / X16L) weighs as little as 24.3g (S-version) or 26.1g (L-version) and delivers continuous stalling torque greater than 7.1 mNm, with maximum stalling torque exceeding 16.5 mNm. It integrates gear reduction ratios of 30, 40, and 50, an absolute magnetic encoder for precise position feedback, and SPI communication for low-latency control response.
• The Φ20mm Module (X20S / X20L) supports 12V/24V/48V operation and achieves continuous stalling torque above 17.2 mNm, with maximum stalling torque above 35.3 mNm. Its multi-ratio gearbox (15, 30, 50) and FPC 7PIN interface simplify integration into robotic limbs, while assembly-level stalling torque can reach up to 450 mNm at ratio 50.
• The Φ25mm Module (X25S-UZ / X25S-BZ) employs the CAN FD protocol for robust industrial and medical robotics environments, delivering continuous stalling torque up to 1150 mNm at ratio 50, with backlash reduced to 15 Arcmin and mechanical strength limits reaching 1800 mNm in cold-state initial torque.
• The Φ30mm Module (X30S-UZ / X30S-BZ) is positioned for premium, heavy-duty micro-robotic applications, offering continuous stalling torque up to 1500 mNm at ratio 50, gear efficiency up to 75% at ratio 30, and total inertia of 30.4 gcm² for stability under high-load motion.

Market Validation Through Benchmark Applications

VAXOR-MOTOR’s technology has been validated across several documented use cases that align closely with the needs of medical robotics manufacturers. In one benchmark case, robotic dexterous hands utilized the X16 and X20 modules to achieve high-integration mechanical motion control, enabling human-like finger dexterity—capability directly transferable to manipulation tasks requiring fine motor control.

In another documented application, micro pump systems employed the G05P ultra-micro motor, operating at 55,000 RPM to drive fluid transmission in both medical and consumer applications, ensuring low-cost and high-power density performance. This case demonstrates the practical application of VAXOR-MOTOR’s ultra-micro motor technology within medical fluid-handling contexts, a common requirement in surgical and diagnostic robotic systems.

Additionally, industrial automation deployments integrated Φ30mm modules into precision transmission systems, achieving gear efficiency of 75% and reducing mechanical backlash to 15 Arcmin, underscoring the consistency of performance across the company’s product range regardless of the specific end application.

The company’s stated industries covered include Medical Devices alongside Robotics (Bionic, Dexterous Hands), Industrial Automation, Consumer Electronics, Aerospace (Micro Drones), Fluid Transmission (Micro Pumps), and Photonics. Correspondingly, its customer types include Medical Device Developers, Robot Manufacturers, Industrial System Integrators, and Wearable Technology Firms.

Business Model and Integration Support

VAXOR-MOTOR follows a product-based sales approach for its standardized modules across the X16, X20, X25, and X30 series. Deployment options include hardware integration via standardized FPC 7PIN interfaces or communication through CAN FD/SPI protocols, with platform compatibility extending across 12V, 24V, and 48V DC bus systems.

The company’s service model combines hardware provision with technical integration support, providing detailed technical specifications and test data for electric drive assemblies covering torque, speed, and thermal parameters. This level of documentation is particularly relevant to medical device developers who require verifiable performance data during design validation and integration planning. After-sales support is oriented toward technical inquiries and discussions regarding product specifications and operational parameter ranges, allowing engineering teams to clarify integration requirements before deployment.

Conclusion

For manufacturers developing surgical robots and other precision medical instruments, VAXOR-MOTOR’s combination of axial flux motor technology, micro cycloidal gear reduction, and non-contact magnetic encoding offers a documented technical foundation suited to compact, high-torque, and thermally resilient applications. From the ultra-micro G04P/G05P/G06P series adapted for medical micro-surgical robots to the broader X16–X30 joint actuator modules validated in dexterous robotic hand and micro pump applications, the company’s product matrix reflects a consistent engineering approach centered on phase imbalance control, gear efficiency, and backlash minimization—technical characteristics that directly support the precision requirements of medical robotics development.
